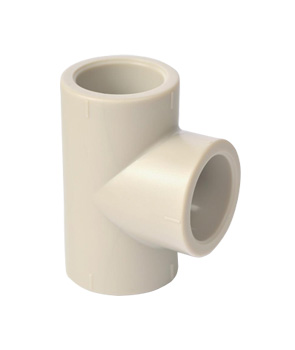

異三通 (SxSxS)
優點：
描述：
描述：

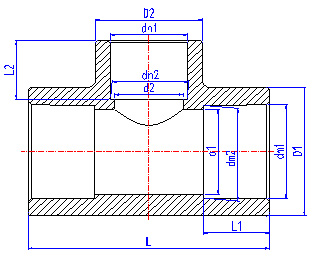

產品規格（單位: MM）
| 尺寸 | 外徑 | 承插口類型 | 承插口尺寸 | ||||||||||||
| D1 | D2 | dm1 | dm2 | L1 | dn1 | dn2 | L2 | d1 | d2 | L | |||||
| min | max | min | max | min | max | min | max | ||||||||
| DN20xDN15 | 33.00 | 26.50 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 21.80 | 17.05 | 58.05 |
| DN25xDN20 | 42.20 | 33.00 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 28.70 | 21.80 | 67.00 |
| DN25xDN15 | 42.20 | 26.50 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 28.70 | 17.05 | 62.25 |
| DN32xDN25 | 53.00 | 42.20 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 36.60 | 28.70 | 78.70 |
| DN32xDN20 | 53.00 | 33.00 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 36.60 | 21.80 | 71.80 |
| DN32xDN15 | 53.00 | 26.50 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 36.60 | 17.05 | 67.05 |
| DN40xDN32 | 66.00 | 53.00 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 46.60 | 36.60 | 92.60 |
| DN40xDN25 | 66.00 | 42.20 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 46.60 | 28.70 | 84.70 |
| DN40xDN20 | 66.00 | 33.00 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 46.60 | 21.80 | 77.80 |
| DN40xDN15 | 66.00 | 26.50 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 46.60 | 17.05 | 73.05 |
| DN50xDN40 | 83.50 | 66.00 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 59.40 | 46.60 | 110.60 |
| DN50xDN32 | 83.50 | 53.00 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 59.40 | 36.60 | 100.60 |
| DN50xDN25 | 83.50 | 42.20 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 59.40 | 28.70 | 92.70 |
| DN50xDN20 | 83.50 | 33.00 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 59.40 | 21.80 | 85.80 |
| DN50xDN15 | 83.50 | 26.50 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 59.40 | 17.05 | 81.05 |
| DN65xDN50 | 95.00 | 83.50 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 70.30 | 59.40 | 130.40 |
| DN65xDN40 | 95.00 | 66.00 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 70.30 | 46.60 | 117.60 |
| DN65xDN32 | 95.00 | 53.00 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 70.30 | 36.60 | 107.60 |
| DN65xDN25 | 95.00 | 42.20 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 70.30 | 28.70 | 99.80 |
| DN65xDN20 | 95.00 | 33.00 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 70.30 | 21.80 | 92.80 |
| DN65xDN15 | 95.00 | 26.50 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 70.30 | 17.05 | 88.00 |
| DN80xDN65 | 113.50 | 95.00 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 84.90 | 70.30 | 150.30 |
| DN80xDN50 | 113.50 | 83.50 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 84.90 | 59.40 | 139.40 |
| DN80xDN40 | 113.50 | 66.00 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 84.90 | 46.60 | 126.60 |
| DN80xDN32 | 113.50 | 53.00 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 84.90 | 36.60 | 116.60 |
| DN80xDN25 | 113.50 | 42.20 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 84.90 | 28.70 | 108.70 |
| DN80xDN20 | 113.50 | 33.00 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 84.90 | 21.80 | 101.80 |
| DN80xDN15 | 113.50 | 26.50 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 84.90 | 17.05 | 97.00 |
| DN100xDN80 | 138.50 | 113.50 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 87.80 | 88.80 | 86.40 | 87.40 | 36.00 | 104.30 | 84.90 | 176.90 |
| DN100xDN65 | 138.50 | 95.00 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 73.20 | 74.00 | 71.90 | 72.70 | 31.50 | 104.30 | 70.30 | 162.30 |
| DN100xDN50 | 138.50 | 83.50 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 61.60 | 62.20 | 61.10 | 61.70 | 28.00 | 104.30 | 59.40 | 151.40 |
| DN100xDN40 | 138.50 | 66.00 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 48.70 | 49.30 | 48.30 | 48.90 | 24.00 | 104.30 | 46.60 | 138.60 |
| DN100xDN32 | 138.50 | 53.00 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 38.70 | 39.30 | 38.30 | 38.90 | 21.00 | 104.30 | 36.60 | 128.60 |
| DN100xDN25 | 138.50 | 42.00 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 30.70 | 31.30 | 30.40 | 31.00 | 18.60 | 104.30 | 28.70 | 120.70 |
| DN100xDN20 | 138.50 | 33.00 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 23.80 | 24.40 | 23.50 | 24.10 | 16.50 | 104.30 | 21.80 | 113.80 |
| DN100xDN15 | 138.50 | 26.50 | 107.30 | 108.50 | 105.80 | 106.80 | 42.00 | 19.00 | 19.50 | 18.80 | 19.30 | 15.00 | 104.30 | 17.05 | 109.00 |
